14NiCrMo13-4 Hot Rolled Steel Bar

  • 47 Views
  • 04-Sep-2024

14NiCrMo13-4 steel material Features

1. Carburizing and heat treatable nickel-chromium molybdenum steel
2. After carburizing, quenching and tempering, the surface hardness is around 730 HV
3. Good toughness of the carburized layer.
4. High level of hardenability.
5. Good mechanical properties.
6. Good resistance to fatigue.

14NiCrMo13-4 steel bar Common size :
Common diameter for hot rolled steel bar: 6mm to 70mm
Common diameter for forged steel bar: 80mm to 1200mm

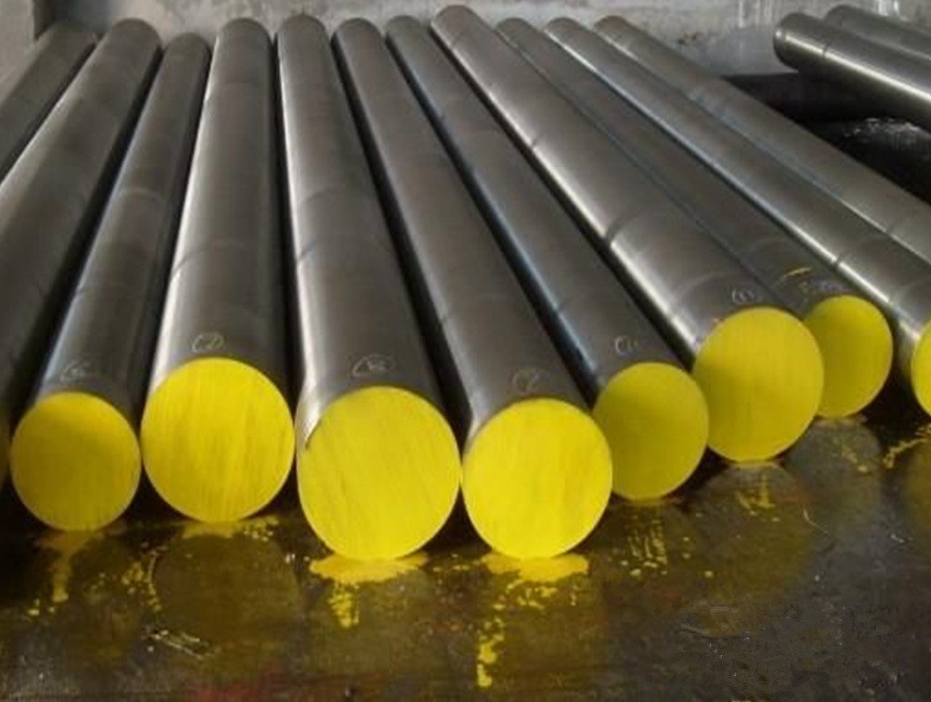

14NiCrMo13-4 Hot Rolled Steel Bar

Package: standard seaworthy packing or as customer required

Tolerance for the steel bar:
Diameter tolerance: 0~3mm, Length tolerance:0~20mm
straightness: 3mm/1000mm

14NiCrMo13-4 steel bar Delivery condition:
Hot forged +Normalized+rough turned Q/T:Quench+ Temper Annealing

EAF ARC FURNACE + LF REFINING+ VD + FORGING (DOUBLE) + FIXED LENGTH + SEP1921C/c TESTING

14NiCrMo13-4 steel bar Chemical composition


Grade

C

Si

Mn

P

S

Cr

Ni

Cu

Mo

14NiCrMo13-4

0.11-0.17

0.40

0.30-0.60

≤0.035

≤0.035

0.80-1.10

3.00-3.50

≤0.25

0.10-0.25

14NiCrMo13-4 steel bar Mechanical property

Grade

Tensile strength

Yield strength

Elongation

σb (MPa) Min

σb (MPa) Min

δ5 (%)Min

14NiCrMo13-4

520

145

16

Application
14NiCrMo13-4 Various heavily stressed carburized and non carburized mechanical parts

steel bar China supplier

Safety-critical parts for the aerospace industry. screw, pull rod, Axle key, rings, gear, sleeve, etc.; On the cutting performance is good, widely used in automatic machine processing of bolts, screws, etc.; 14NiCrMo13-4can be applied to manufacturing to cold upset forging parts and components; 14NiCrMo13-4can also be used for carburizing, etc.

KUNFENG Steel is professional in steel bar. We are a large stockist of steel bar in China. We have almost 750 ton steel bar of 14NiCrMo13-4in stock. The stock size ranges Φ8-700. The common length for 14NiCrMo13-4steel bar is 3000 to 7000mm. And the price is competitive. If your size can be picked in our warehouse, we can transport to the loading port in 3 days. So please be free to contact us if you require steel bar.
