AH40 steel plate is mainly used for shipbuilding and oil platform, the shipbuilding grade AH40 can be used in the manufacture of the ship's hull structure, whose weight is more then 10000 tons. Shipbuilding grade AH40 is the high tensile strength steel, AH40 steel for shipbuilding and oil platform must be good toughness properties, higher strength, strong corrosion-resistance, the processing properties, and welding properties.

AH40 shipbuilding steel plate specification:
Thickness: 6mm-200mm, Width: 1500mm-4000mm, Length: 6000mm-180000mm

The AH40 steel plate Chemical Composition %

Grade	C max	Si max	Mn	P max	S max	Als min	Ti max	Cu max	Cr max	Ni max	Mo max	Nb	V
AH40	0.18	0.50	0.90-1.60	0.035	0.035	0.015	0.02	0.35	0.20	0.40	0.08	0.02-0.05	0.05-0.10

Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.40% (thickness ≤ 50mm). Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.

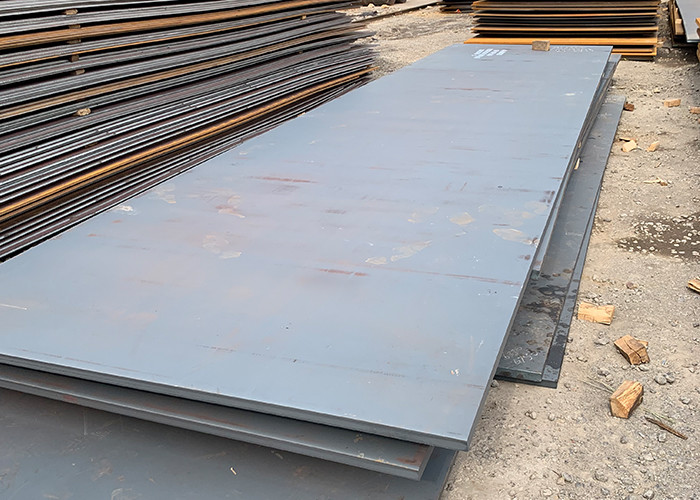

marine steel plate for sale

The AH40 steel plate Mechanical Property

Grade	Rm (MPa)	Re(MPa) min	A% min	Akv/J min
AH40	510-660	390	20	E.T °C	Thickness (mm)
				0	≤ 50		>50-70		>70-100
					L	C	L	C	L	C
					41	27	-

Note: In the list , Rm: tensile strength,Re: Yield strength,A%: elongation, E.T: experimental temperature,L: lengthways, C: crosswise.

Condition Of Delivery

Grade	Fine grains elements	category	The thickness of steel
			≤ 12	>12.5-20	>20-25	>25-35	>35-50	>50-100
AH40	any	Plate/ sheet	A(50)	N(50),CR(50),TM(50)				-
		Profile steel

Note: 1. delivery condition: A =Any ; N=Normalized ; CR=Control Rolled ; TM=TMPC, Temperature - deformation control rolling; AR*= Can be hot rolled with the agreement of Classification Society ; CR*=Can be control rolled with the agreement of Classification Society .
2. The Figure in the ( ) means the sampling volume to do the impact test, the unit is Ton.(-) means without impact test.
