CCS Grade E Shipbuilding Steel Plate

  • 78 Views
  • 02-Sep-2024

CCS Grade E shipbuilding steel plate is one of the grade of shipbuilding steel. KUNFENG is the supplier of CS Grade E shipbuilding steel plate. We have a long story in exporting and producing CS Grade E shipbuilding steel plate. CS Grade E shipbuilding steel plate's quality can be guarantted by KUNFENG owing to more than 17 years history and sound service

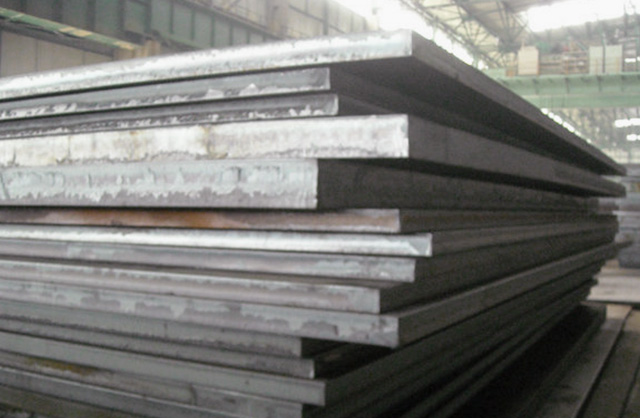

shipbuilding steel plate

The Application of CCS Grade E Shipbuilding Steel Plate

CCS Grade E Shipbuilding steel plate is mainly used to Shipbuilding Project and Ocean Offshore Structural Project.

CCS Grade E Shipbuilding Steel Plate Chemical Composition and Mechanical Property

Grade

Chemical Composition(%)

C

Mn≥

Si

P

S

CCS E

0.21

2.5XC

0.5

0.035

0.035

Grade

Mechanical Property



Tensile Strength(MPa)

Yield Strength(MPa)

% Elongation in 2 in.(50mm) min

Impacting Test  Temperature(°C)



CCS E

400-520

235

22

-20



Rolling Size of CCS Grade E shipbuilding steel plate

Thickness

3-150mm

Width

1220-4200mm

Length

5000-18000mm

Notes: coil thickness ≤ 25mm

CCS Grade E shipbuilding steel plate Additional Condition

UT (Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered), Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

KUNFENG is the professional Chinese CCS Grade E shipbuilding steel plate supplier. If you need CCS Grade E shipbuilding steel plate , we can put the CCS Grade E shipbuilding steel plate order to our steel mill directly or collect these goods from our stock directly if we have enough ex-stock. Besides. if you need any offer or if you want to know the price and any other information about CCS Grade E shipbuilding steel plate price, please be free to contact us.
