DH32 Shipbuilding steel plate

  • 61 Views
  • 10-Jul-2024

ASTM A131 DH32 shipbuilding steel is not only the high tensile strength steel but also is the Hull structural steel. DH32 shipbuilding steel has good toughness properties, higher strength,strong corrosion-resistance,the processing properties,and good welding properties.Shipbuilding steel grade DH32 is used for shipbuilding and oil platform purpose and they are approved by ABS,DNV,GL,BV,LR,NK,RINA and other classification societies. What's more, DH32 shipbuilding steel plate can be used in manufacturing the ship's hull structure whose weight is below 10000 tons.

DH32 Shipbuilding steel plate specification:
Thickness: 4mm to 260mm,
Width: 1200mm to 4000mm
Length: 3000mm to 18000mm.

DH32 shipbuilding steel plate Chemical Composition %


Grade

C max

Si max

Mn

P max

S max

Als min

Ti max

Cu max

Cr
max

Ni
max

Mo
max

DH32

0.18

0.50

0.90-1.60

0.035

0.035

0.015

0.02

0.35

0.20

0.40

0.08

Note: Generally speaking CE will be ≤ 0.40%. If the delivery condition is TMPC, the CE will be : ≤ 0.36% (thickness ≤ 50mm),≤0.38%( when the thickness >50-100). Ceq% =(C+Mn)/6+(Cr+Mo+V)/5+(Ni+Cu)/15.

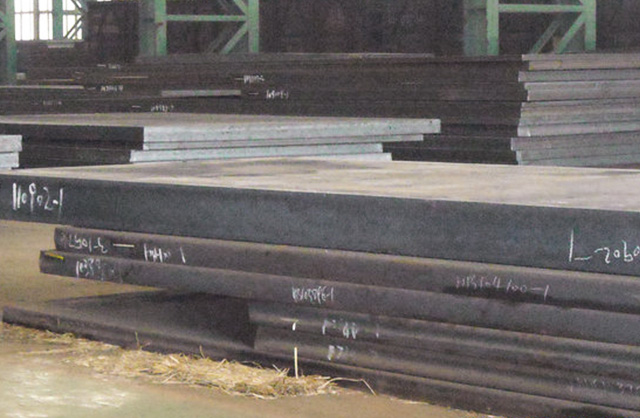

marine steel plate supplier

DH32 shipbuilding steel plate MechanicaL Property


Grade

Rm
(MPa)

Re(MPa) min

A% min

Akv/J min

DH32

440-570

315

22

E.T °C

Thickness (mm)

-20

≤ 50

>50-70

>70-100

L

C

L

C

L

C

31

22

38

26

46

31

 Note: In the list , Rm: .tensile strength,Re: Yield strength,A%: elongation, E.T: experimental temperature,L: lengthways, C: crosswise.

DH32 shipbuilding steel plate Condition Of Delivery


Grade

Fine grains elements

category

The thickness of steel

≤ 12

>12.5-20

>20-25

>25-35

>35-50

>50-100

DH32

Nb+V or V

Plate/
sheet

A(50)

N(50),CR(50),TM(50)

N(50),CR(25),TM(50)

Profile steel

N(50),CR(50),TM(50),AR*(25)

-

Al or Al+Ti

Plate/
sheet

A(50)

AR*(25)

-

N(50),CR(50),TM(50)

N(50),CR(25),TM(50)

Profile steel

A(50)

N(50),CR(50),TM(50),AR*(25)

-

Note: 1. delivery condition: A =Any ; N=Normalized ; CR=Control Rolled ; TM=TMPC, Temperature - deformation control rolling; AR*= Can be hot rolled with the agreement of Classification Society ; CR*=Can be control rolled with the agreement of Classification Society .
2.  The Figure in the ( ) means the sampling volume to do the impact test, the unit is Ton.(-) means without impact test.

DH32 shipbuilding steel plate Contrast in the different standard


ASTM A131M

TOCT 5521

JIS G3106

BS LR

GB712

DH32

D32

SM490B
SM490C

DH32

D32
