Grade E Shipbuilding steel plate

  • 78 Views
  • 02-Sep-2024

ASTM A131 Grade E shipbuilding steel is not only the common tensile strength steel but also is the Hull structural steel. Grade E shipbuilding steel has good toughness properties, higher strength,strong corrosion-resistance,the processing properties,and good welding properties. Shipbuilding steel grade E is used for shipbuilding and oil platform purpose and they are approved by ABS, DNV, GL, BV, LR, NK, RINA and other classification societies. What's more,the A shipbuilding steel E can be used in the manufacture of the ship's hull structure whose weight is below 10000 tons,and usually do navigation around coastal and river area.

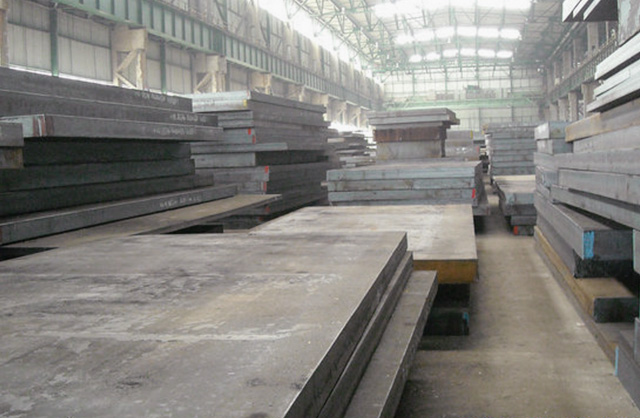

grade E shipbuilding steel plate

Grade E shipbuilding steel plate specification:
Thickness: 6mm-200mm, Width: 1500mm-4000mm, Length: 6000mm-180000mm

Grade E shipbuilding steel Chemical Composition


Grade

C max

Si max

Mn

P max

S max

Als min

Grade E

0.18

0.35

 0.70-1.20

0.035

0.035

0.015

Note: CE: C+1/6Mn ≤ 0.40% Cu ≤ 0.35%,Ni ≤ 0.30%≤

Grade E shipbuilding steel Mechanical Property


Grade

Rm
(MPa)

Re(MPa) min

A% min

Akv/J min

Grade E

400-520

235

22

E.T °C

Thickness (mm)

-40

50

>50-70

>70-100

L

C

L

C

L

C

27

20

34

24

41

27

 Note: In the list , Rm: tensile strength,Re: Yield strength,A%: elongation, E.T: experimental temperature,L: lengthways, C: crosswise.

steel plate supplier in China

Grade E shipbuilding steel Condition Of Delivery


Grade

category

The thickness of steel

≤ 12

>12.5-25

>25-35

>35-50

>50-100

Grade E

Plate/sheet

N,TM

Profile steel

N(25),TM(25),AR*(15),CR*(15)

-

Note: 1. delivery condition: A =Any ; N=Normalized ; CR=Control Rolled ; TM=TMPC, Temperature - deformation control rolling; AR*= Can be hot rolled with the agreement of Classification Society ; CR*=Can be control rolled with the agreement of Classification Society .
2.  The Figure in the ( ) means the sampling volume to do the impact test, the unit is Ton.(-) means without impact test.

E steel Contrast in the different standard


ASTM A131M

TOCT 5521

JIS G3106

BS LR

GB712

Grade E

Grade E

SM400B
SM400C

Grade E

Grade E

as a Grade E shipbuilding steel supplier in China , more infotmation about Grade E shipbuilding steel, please contact us.
